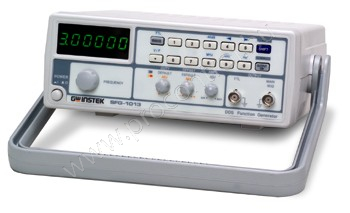

GWInstek Funkciógenerátor SFG-1003 3 MHz DDS
Brief description
The SFG-1000 Series are economic function generators with high accuracy and high stability output and are designed on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA. The 3MHz frequency range and the Sine, Square, Triangle and TTL waveform selection adequately provide the fundamental functions to ensure a high confidence with test results. Combining DDS technology at an affordable price, the SFG1003 is great value and the ideal solution if you need a signal source for accurate but simple measurement applications.
Properties
-
DDS Technology and FPGA Chip Design
-
Frequency Range:0.1Hz~3MHz
-
High Frequency Accuracy : ± 20ppm
-
High Frequency Stability : ± 20ppm
-
Max. Frequency Resolution : 100mHz
-
Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
Technical attributes:
|
Agency
|
digitális
|
|
Frequency Range (Sine, Square)
|
0.1Hz ~ 3MHz
|
|
Frequency Range (Triangle)
|
0.1Hz ~ 1MHz
|
|
Frequency Resolution
|
0.1Hz maximum
|
|
Frequency Stability
|
±20ppm
|
|
Frequency Accuracy
|
±20ppm
|
|
Aging
|
± 5 ppm / év
|
|
Output Function
|
Szinusz,négyszög,háromszög, TTL
|
|
Amplitude Range
|
10Vp-p
|
|
Impedance
|
50Ω±10%
|
|
Attenuator
|
-40dB±1dB×1
|
|
DC Offset
|
＜-5V ~ ＞5V
|
|
Tasks Controll Range
|
25% ~ 75% ~1MHz (Csak négyszög hullám)
|
|
Display
|
6-digites LED kijelző
|
|
Sine Wave Harmonic Distortion
|
≧-55dBc, 0.1Hz ~ 200kHz ≧-40dBc, 0.2MHz ~ 2MHz ≧-35dBc, 2MHz ~ 3MHz
|
|
Triangle Wave Linearity
|
≧98%, 0.1Hz ~ 100kHz ; ≧95%, 100kHz ~ 1MHz
|
|
Square Wave Symmetry
|
5% periódusonként+4ns, 0.1Hz ~ 100kHz
|
|
TTL Output Rate
|
≧3Vp-p
|
Mentés
|
| Product Code: |
392069 |
| Manufacturer: |
GW Instek
|
|
Pieces/Packages:
|
1 pcs
|
|
Minimum order quantity:
|
1 pcs
|
|
