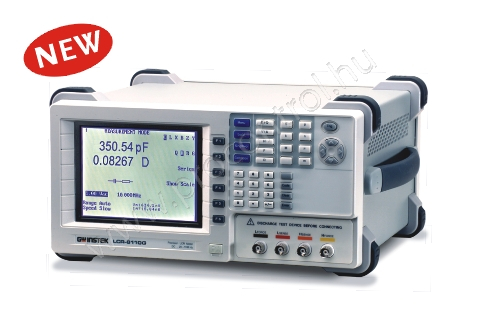

LCR-8101G (CE) with Graph Mode LCR Meters

This product has been discontinued. Its data is still reachable on our site for support purposes. Please find its replacement product in Recommended products section below.

Brief description

The LCR-8000G Series LCR meter, with test frequency up to 10MHz, provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. The Multi-Step function allows on-screen programming of customized measurement sequence with Pass/Fail indication. Each program includes 30 test steps and each test step can be set with selected parameters and test limits. Under Multi-Step operation, a tedious work routine can be done step by step automatically just at a press of a button. With Graph Mode, LCR-8110G, LCR-8105G and LCR-8101G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. This gives an analysis result of either impedance vs. frequency or impedance vs. applied voltage all at a glance. GPIB and RS-232C interfaces are available as standard for instrument control and test result display on the PC. The rich features of LCR-8000G Series easily make your measurement tasks done at a very competitive price.

Technical attributes:

Mentés

Technical Description

Wide Test Frequency 20Hz ~ 10/5/1MHz
0.1% Basic Accuracy & 6 Digits Measurement Resolution
Large LCD Display with Intuitive Interface
Full Measuring Functions with DUT V/I Monitor
PASS/FAIL Function ( abs, % or delta) with Judgment Alarm
DC Resistance Measurement
Multiple Step Mode
Standard RS-232C/GPIB Interface
