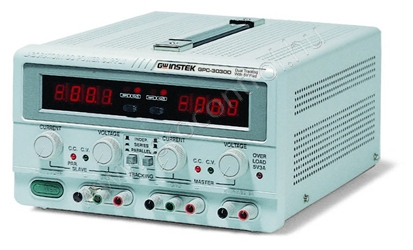

GPC-3060D Linear DC Power Supplies

This product has been discontinued. Its data is still reachable on our site for support purposes. Please find its replacement product in Recommended products section below.

Brief description

The GPC-Series are triple output, 195 to 375W, linear DC power supplies. Channel 1 and 2 are fully adjustable (model dependant) and Channel 3 is fixed at 5V/3A with ripple and noise at less than 2mVrms. Overload and reverse polarity protection keep GPC-Series and its loads safe from unexpected conditions.The GPC-3030DQ contains a temperature controlled cooling fan for thermal protection.The GPC features continuous or dynamic internal load selection and series or parallel tracking for application flexibility.The GPC-Series is an ideal solution for inexpensive bench-top applications requiring low noise and multiple outputs.

Technical attributes:

Mentés

Technical Description

Four Digital Panel Meters (GPC-3030DQ)
Triple Output
Auto Tracking
Auto Series and Parallel Operation
Constant Voltage and Constant Current Operation
Low Ripple and Noise
Internal Select for Continuous or Dynamic Load
Overload and Reverse Polarity Protection
3 1/2 Digits 0.39" LED Display(GPC-3030DQ)
3 1/2 Digits 0.5" LED Display(GPC-1850D/3030D/3060D/6030D)
5V, 3A Fixed Output
