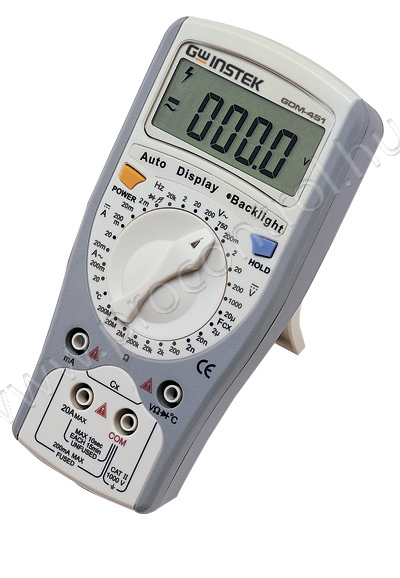

GDM-451Digital Multimeters
Brief description
4 1/2 (19999 Counts) Single LCD Display.
The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features: automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation. The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.
Properties
-
4 1/2 Digits 19999 counts
-
Manual Ranging
-
Continuity Check/Diode Test
-
Data Hold
-
Temperature Measurement
-
Capacitance, Frequency Measurement
Technical attributes:
|
Full Scale
|
19999
|
|
DC Voltage range
|
200mV, 2V, 20V, 200V, 1000V
|
|
Ac Voltage Range
|
2V, 20V, 200V, 750V
|
|
DC Current Range
|
2mA, 20mA, 200mA, 20A
|
|
AC Current Range
|
20mA, 200mA, 20A
|
|
Resistance Range
|
200Ω ~ 200MΩ
|
|
Diode Test
|
van
|
|
Frequency Range
|
1Hz~20kHz
|
|
Continuity Controll
|
van
|
|
Temperature Range
|
-40℃~1000℃
|
|
Display
|
4 1/2 Digites
|
|
Dimensions (mm)
|
80(W) x 165(H) x 38.3(D) mm
|
|
Weight
|
0,275 kg
|
Mentés
|
| Product Code: |
350020 |
| Manufacturer: |
GW Instek
|
|
Pieces/Packages:
|
1 pcs
|
|
Minimum order quantity:
|
1 pcs
|
|
