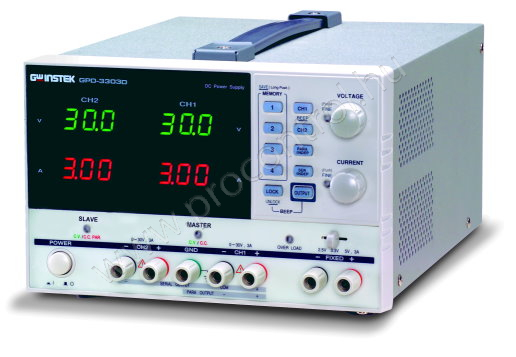

GPD-3303S Programmable Linear DC Power Supplies

Brief description

The GPD-3303S / GPD-3303D series inherits the superior technology and high quality, which GWInstek has established through its long history of power supply design and manufacturing. The GPD-3303S /GPD-3303D series provides 195W output power, three isolated output channels, high resolution output(GPD-3303S ), digital control panel, 4 sets of setup memory, USB remote control, smart cooling fan control, high reliability, and compact size. The GPD-3303S / GPD-3303D establish a new benchmark for economic programmable linear D.C. power supply market segment. The most remarkable feature of this series product with minimum 1mV / 1mA resolution of GPD-3303S, which right fits into the applications needing accurate control of power source.GPD-3303D, another member of the family, is considered a digitally-upgraded version of GPS-3303.

Properties

• Three independent output: 30V/3A x 2, 2.5V/3.3V/5V/3A x 1
• 4 LED displays: 3 digits after decimal point
• Minimum resolution: 100mV/10mA
• Digital panel control (rotary encoder Switch, rubber key with indicator)
• User-friendly operation, coarse/fine volume control
• 4 sets save/recall
• Key-lock
• Warning buzzer
• Output on/off
• Tracking series and parallel mode
• Smart cooling fan achieving low noise
• Light-weight and compact design
• USB interface
• PC software
• Labview driver
